HTR2024-DC Automatic Laser Wheelset Inspection Machine with High Measurement Accuracy Non-Contact Measurement and Automatic Calibration

  • HTR2024-DC Automatic Laser Wheelset Inspection Machine with High Measurement Accuracy Non-Contact Measurement and Automatic Calibration
Plaats van herkomst China
Merknaam HTR
Certificering EN50155, EN45545, GB/T 25119, etc.
Modelnummer HTR2024-DC
Min. bestelaantal 100 stuks
Prijs Onderhandelbaar
Verpakking Details De kartondoos, Houten geval, vanaf vereist
Levertijd 15-50 dagen, hangt van QTY af
Betalingscondities L/C,T/T,Western Union,Paypal
Levering vermogen 1.000 PCs/maand
Productdetails
Laat een bericht achter
Productomschrijving

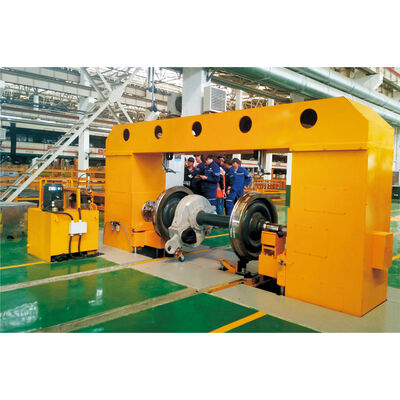

HTR2024-DC Automatic Laser Wheelset Inspection Machine
Product Overview

The Model HTR2024-DC Automatic Laser Wheelset Inspection Machine for EMUs/Metro Vehicles consists of a machine frame, wheelset pre-inspection station, wheelset thrust module, wheelset lifting module, wheelset rotation module, wheelset precision measurement module, hydraulic system, electrical control unit, and data acquisition and processing microcomputer. It features high measurement accuracy and fully complies with industry standards.

Main Product Features
  • Automatically performs measurement, qualification judgment, and record generation according to the corresponding technical parameters required in TBT 3470-2017 "Measuring machine for geometric parameters of locomotive and rollingstock wheelsets"
  • Features a measurement item selection function, allowing operators to choose measurement parameters as needed. Once selected, the system conducts automatic measurement with intelligent prompts
  • Easy to operate, provides detailed work prompts and guides, and can determine whether measurement results are qualified based on preset limit values
  • Features intelligent automatic calibration and self-calibration functions
  • Operating interface is in Chinese and conforms to domestic operating habits, offering excellent human-machine interaction
  • Adopts world-leading high-precision displacement sensors and utilizes non-contact measurement method, ensuring no damage to the workpiece
Main Technical Indicators
Detection Parameters Measuring Range (mm) Maximum Permissible Error (mm) Repeatability (mm)
Wheel Diameter 950 ~ 1260 -0.3 ~ 0 ≤0.1
Flange Height 25 ~ 40 ±0.1 ≤0.05
Flange Thickness 22 ~ 37 -0.2 ~ 0 ≤0.05
Rim Thickness 38 ~ 95 -0.5 ~ 0 ≤0.1
Rim Width 125 ~ 145 -0.5 ~ 0 ≤0.1
Wheelset Inner Distance 1349 ~ 1365 ±0.2 ≤0.1
Vertical Wear -2 ~ 2 -0.2 ~ 0 ≤0.05
HTR2024-DC Automatic Laser Wheelset Inspection Machine with High Measurement Accuracy Non-Contact Measurement and Automatic Calibration 0
