HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench

  • HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench
  • HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench
Plaats van herkomst China
Merknaam HTR
Certificering EN50155, EN45545, GB/T 25119, etc.
Modelnummer HTR2820
Min. bestelaantal 100 stuks
Prijs Onderhandelbaar
Verpakking Details De kartondoos, Houten geval, vanaf vereist
Levertijd 15-50 dagen, hangt van QTY af
Betalingscondities L/C,T/T,Western Union,Paypal
Levering vermogen 1.000 PCs/maand
Productdetails
Meetbereik 0 kPa ~ 110 kPa Meettijd 45 s (inclusief klemmen)
Veercompressieafstand Zomer De nauwkeurigheid van de drukmeting ±1,5 kPa
Markeren

Passenger coach grounding device test bench

,

Railway axle-end spring pressure tester

,

HTR2820 grounding device test equipment
Laat een bericht achter
Productomschrijving
Product Overview

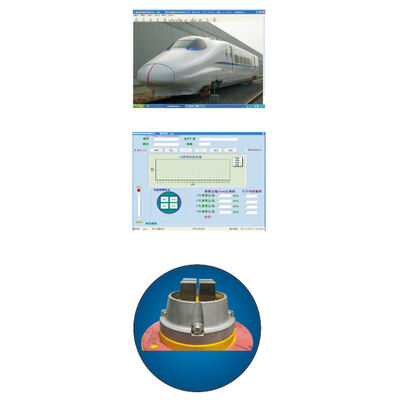

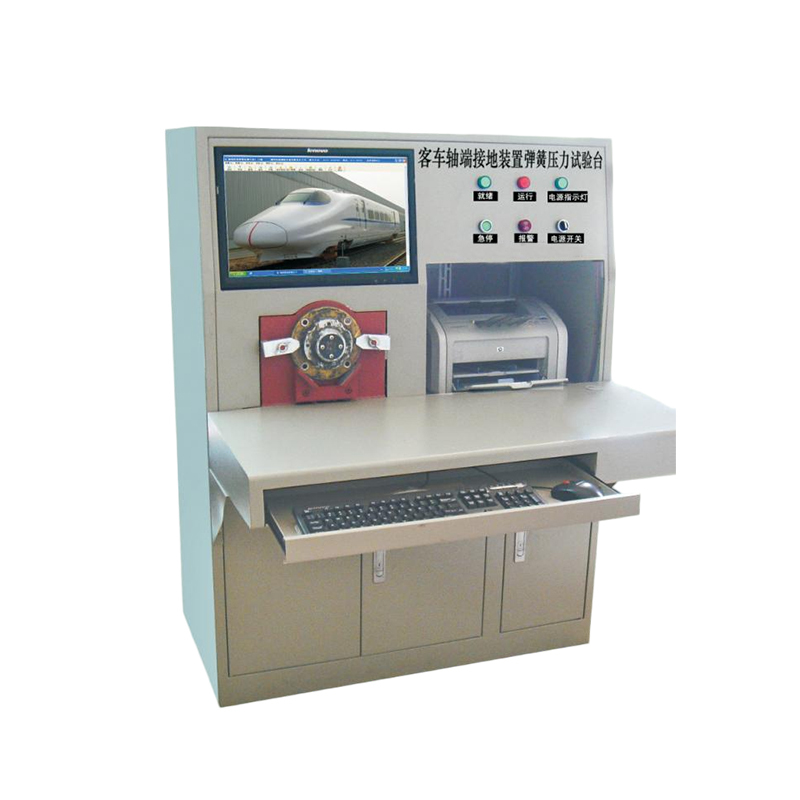

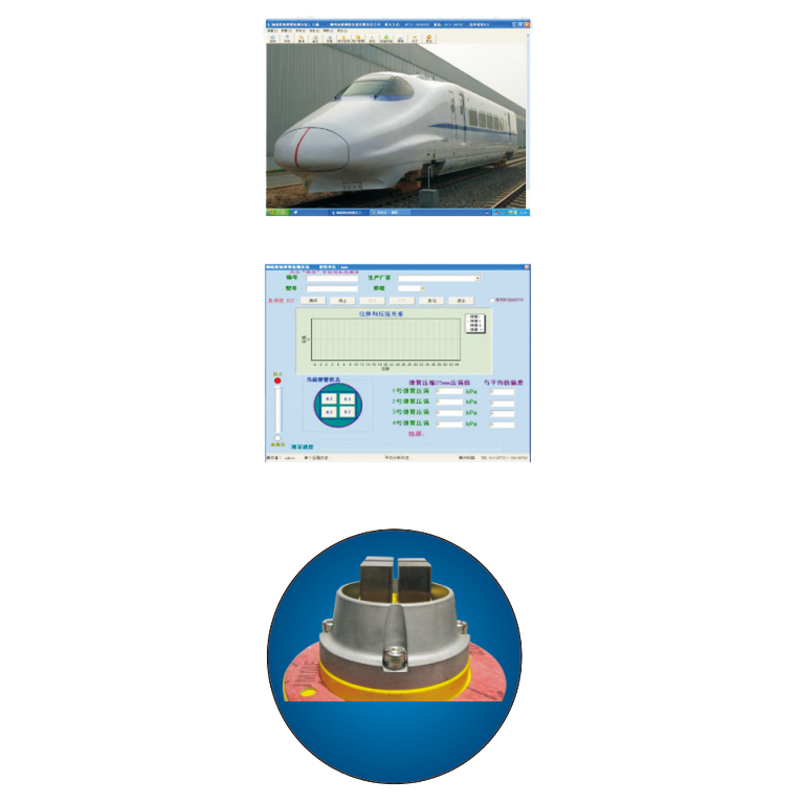

The HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench is a specialized inspection system that integrates pressure sensors and microcomputer control technology. It is specifically designed to detect the spring pressure and average value deviation of the four carbon brushes within a grounding assembly.
The device can simultaneously measure all four spring pressures and their deviations in a single test cycle. By utilizing system software for comprehensive data analysis, it can accurately identify jamming or mechanical binding within the grounding device.

Main Product Features
1. This test bench can simultaneously detect 1 grounding body and 4 carbon brush springs, which is unique among domestic similar products, and its detection efficiency is 4 times that of similar products.
2. It features high accuracy, fast measurement speed, and supports data query, printing, storage and real-time transmission to the KMIS system.
3. It can accurately detect and judge the jamming condition of the grounding device.

Main Technical Indicators
Measuring Range 0 kPa ~ 110 kPa
Measurement Time 45 s (including clamping)
Spring Compression Distance 25 mm
Pressure Measurement Accuracy ±1.5 kPa


HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench 0

HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench 1
