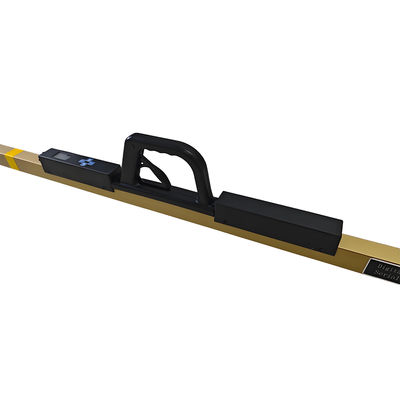

1435MM Mechanical Digital Track Gauge

  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
Plaats van herkomst CHINA
Merknaam HTR
Min. bestelaantal 1000
Prijs Ngotiable
Verpakking Details Exporteerpakking exporteren
Levertijd Ngotiable
Betalingscondities L/c, t/t
Levering vermogen 50000 pc's per maand

Neem contact met me op voor gratis monsters en coupons.

WatAPP:0086 18588475571

wechat: 0086 18588475571

Skypen: sales10@aixton.com

Als u zich zorgen maakt, bieden we 24-uurs online hulp.

x
Productdetails
Productnaam Digitale baanmeter Gauge 1384-1470mm
Controleer de spoormeter 1364-1450 mm Back-to-back afstand 1344-1430 mm
Flenway -klaring 20-107 mm Kan niet. -200-+200 mm
Weergavescherm OLED Vermogensspanning DC3.4V ~ 5.2V (oplaadbare batterij)
Werktemperatuurbereik -30 ℃～+55 ℃ Isolatieprestaties ＞ 1MΩ
Gewicht ≤3 kg
Markeren

1435mm mechanical track gauge

,

digital railway track gauge

,

railway track gauge with warranty
Laat een bericht achter
Productomschrijving

Product Description
The T type digital track gauge is mainly used to measuring the track gauge ,cant, check rail gauge , back to back distance and flangeway clearance. The device is easy to operate ,and its measuring speed is very fast , which can be used either day or night. It is an ideal measurement tool for the railway engineers.

Product Performance Feature

Our digital track gauge is a high-precision railway inspection tool ,which developed according to the current railway situation of all weather, complex railway line , large temperature difference etc., It is composed of electronic and mechanical parts, the electronic part is integrated by microelectronic technology, single-chip technology, sensing technology, signal processing technology and other high-tech .This product has the following features:
· Stable performance and anti-electromagnetic interference: suitable for electrification, non-electrification, automatic block or other block section.
· Fast measurement speed: When used, the measured data can be displayed without additional manual operation after the measuring point is confirmed.
· High measuring accuracy: Precision transmission device with intelligent data processing system, it can be fast calibration. The built-in temperature compensation eliminates the material thermal expansion and cold contraction on the track gauge and super elevation measurement data, which improved the measurement accuracy.
· Large OLED display: the new light-emitting OLED material is adopted. Even in strong sunlight, the
measurements are still clear and intuitive. The characteristics of the instrument are particularly prominent when it is used at night or in tunnels.
· Wide temperature range: -30℃ ~ +55℃ ,it can meet the temperature requirements in most areas.
· Quick calibration operation: simple measurement process.
· Power saving function: no operation within 15 minutes, the system will automatically shut down.
· Large capacity battery: long standby time
· Insulated design
· Waterproof: could use in rainy day

Product Performance

Reference Value

Scope of Use

1435mm standard gauge railway with operating speed ≤ 250 km/h

Track Gauge

1384-1470mm

Measurement Uncertainty

±0.25mm

Check Rail Gauge

1364-1450mm

Back-to-back Distance

1344-1430mm

Flangeway Clearance

20-107mm

Cant

-200-+200mm

Measurement Uncertainty

±0.45mm

Display Screen

OLED

Power Voltage

DC3.4V～5.2V(Rechargeable Battery)

Working Temperature Range

-30℃～+55℃

Insulation Performance

＞1MΩ

Weight

≤3kg

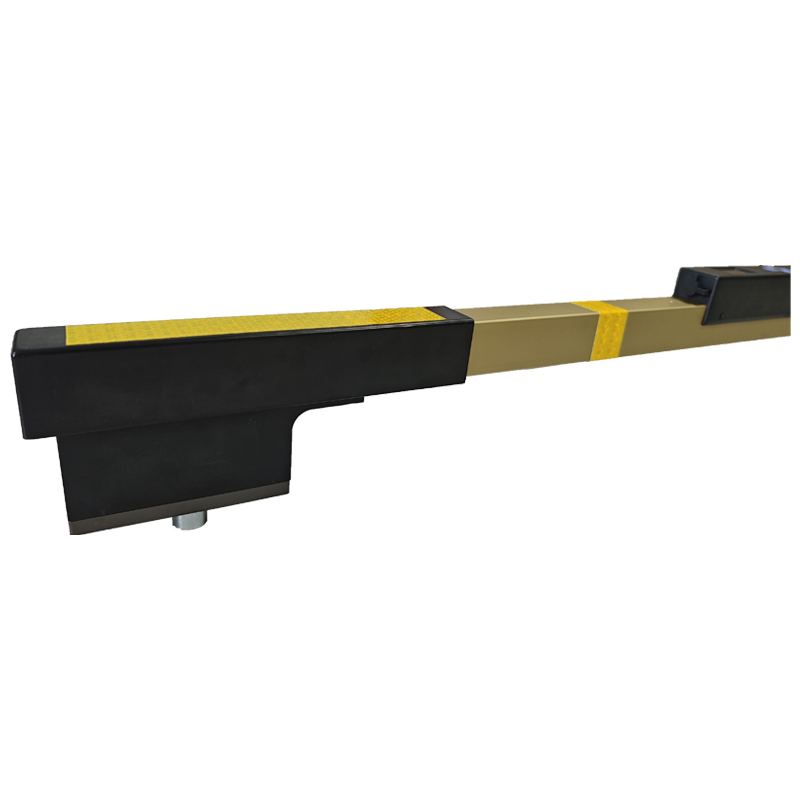

1435MM Mechanical Digital Track Gauge 0

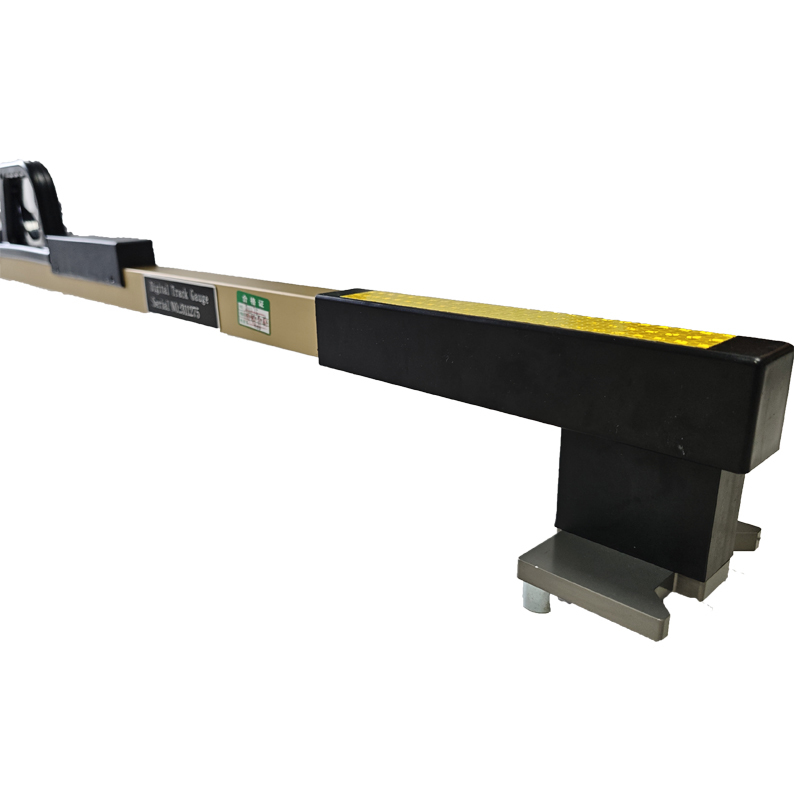

1435MM Mechanical Digital Track Gauge 1

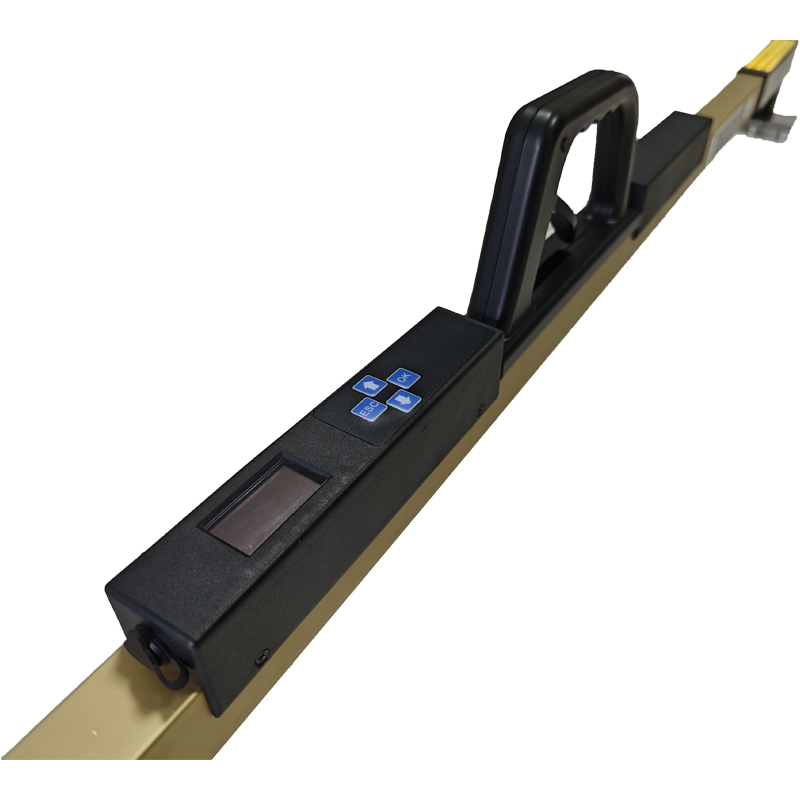

1435MM Mechanical Digital Track Gauge 2

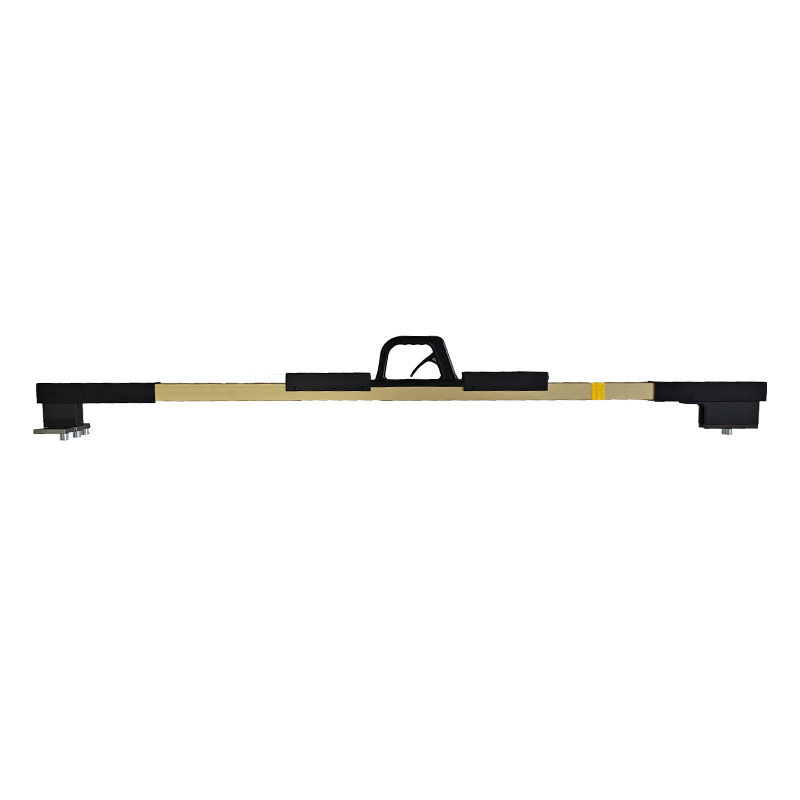

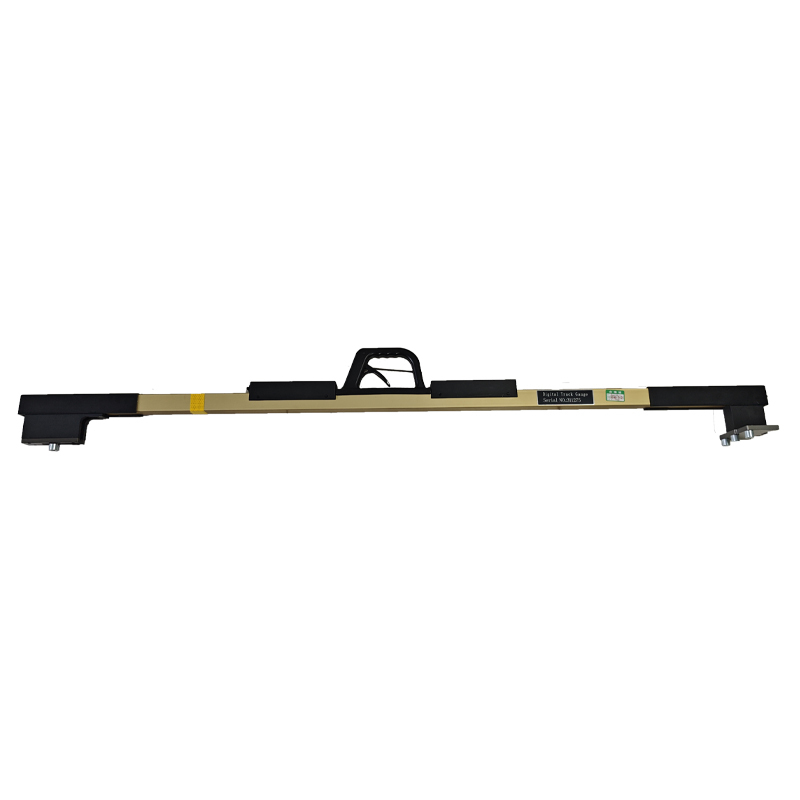

1435MM Mechanical Digital Track Gauge 3
