Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels

  • Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels
  • Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels
  • Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels
Plaats van herkomst China
Merknaam HTR
Certificering IRIS
Minimum Order Quantity 1pc
Prijs Onderhandelbaar
Packaging Details carton box, wooden case /as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,MoneyGram,Paypal
Levering vermogen 10,000 stuks/maand

Neem contact met me op voor gratis monsters en coupons.

WatAPP:0086 18588475571

wechat: 0086 18588475571

Skypen: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Product name EMU Gangway Material Paulin; Aluminium Alloy
Support Method Self-supporting Fire Protection EN45545/BS6853/DIN5510 (optional)
Application EMU High-speed Train Gangway Structure Olive-shaped, Double Bellows with Interior Panels
Gewicht 360 kg Load Capacity Complies with AW3 & TB/T 3094-2015 Requirements
Laat een bericht achter
Productomschrijving

Product Description

Product Introduction
The double olive-shaped bellows (inner and outer layers) significantly improve sound and thermal insulation performance. Made of Hypalon rubber composite material, the bellows exhibit enhanced weather resistance and superior mechanical properties. The interior design enhances the aesthetic appeal of the gangway while providing passengers with a more comfortable travel experience.

Product Features
* Enhanced sound and thermal insulation performance
* Self-supporting, double-layer bellows with olive-shaped gangway system
* Features interior panels that align with cabin decor for improved aesthetics

Specification
Product Performance
Reference Values
Gangway Structure
Olive-shaped, double bellows with interior panels
Distance Between Carriage Ends
500mm
Clear Height
≥1900mm
Clear Width
≥1200mm
Service Life
Bellows service life: 12 years; Interior panels: 8-10 years; Metal components: 30 years
Sound Insulation
≥36dB(A)
Thermal Insulation
≤4.0W/(m²·K)
Load Capacity
Complies with AW3 & TB/T 3094-2015 requirements
Fire Protection
DIN5510-3
Weight
360kg

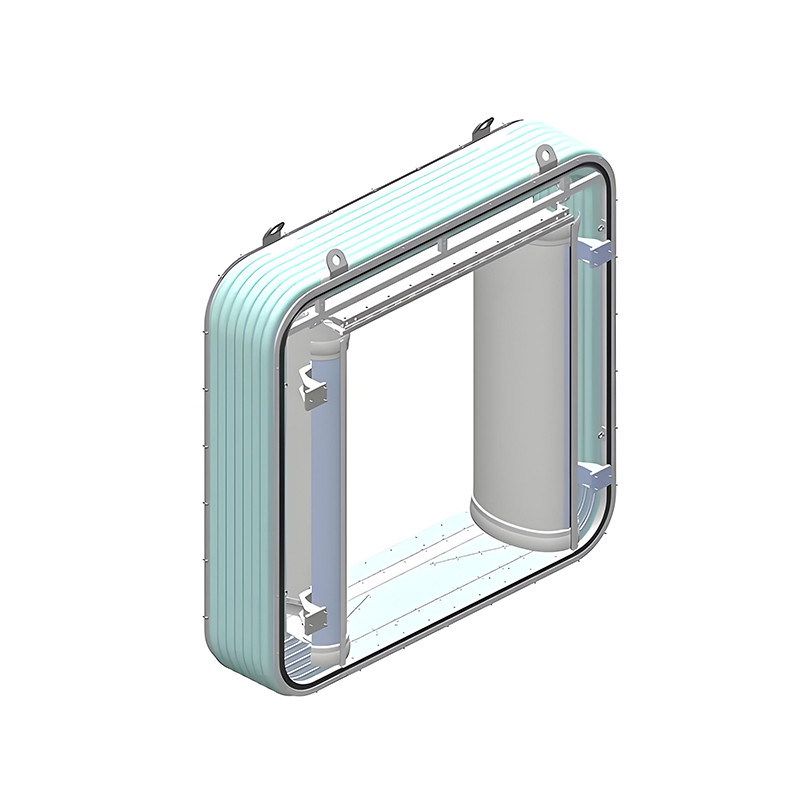

Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels 0

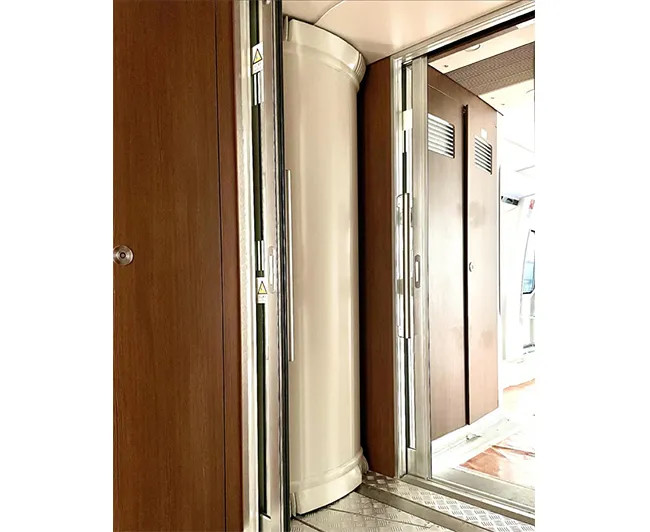

Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels 1
